NSiC Plate---The Ultimate Kiln Furniture for Premium Sanitaryware Firing

🔥 NSiC (Nitride Bonded Silicon Carbide) Large Plates

Engineered specifically for high-temperature firing processes of sanitaryware, our high-performance NSiC plates feature outstanding durability and stability, fully verified in actual production lines.

Precision-Crafted Specifications

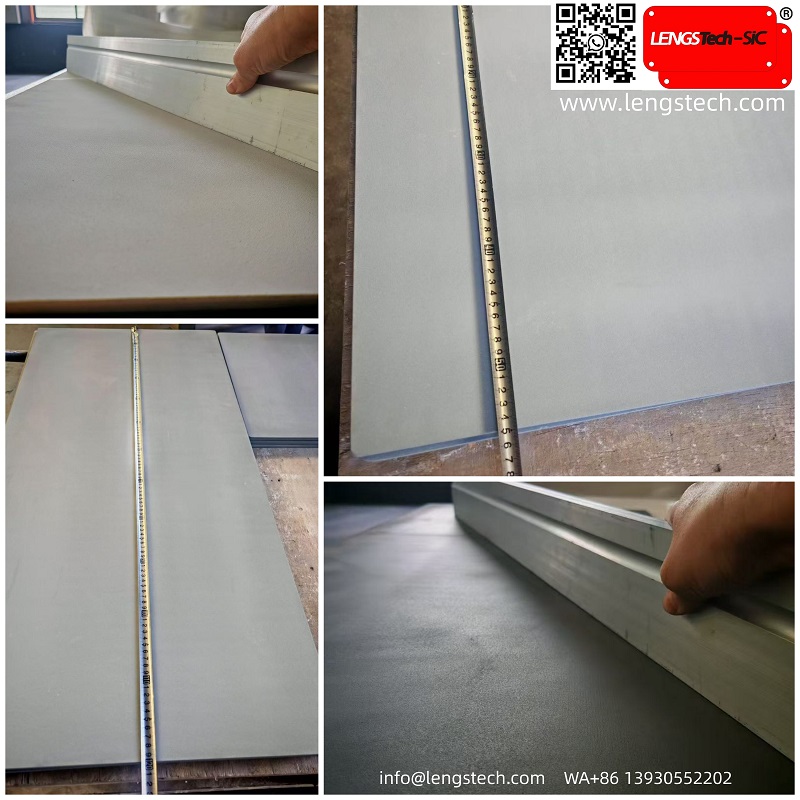

• ---Custom Large Sizes: Available in sizes up to 1200×600mm, ideal for monolithic toilets, pedestal basins, bathtubs and other large sanitaryware products.

• ---Lightweight & Robust: Thickness ranges from 5 to 8mm, over 40% lighter than traditional kiln shelves. It improves loading density and effectively lowers energy consumption.

• ---High Flatness & Stability: Rigid flat surface prevents warpage and uneven stress, guaranteeing reliable firing results.

•


Key Benefits for Sanitaryware Production

• ---Superior High-Temperature Performance: Remains structurally stable above 1400°C without softening or creep. Great thermal shock resistance avoids cracking under frequent heating and cooling cycles. It supports stacked firing of various sanitaryware items, with a service life 2–3 times longer than conventional SiC shelves.

• ---Anti-Adhesion & Anti-Contamination: Dense low-porosity surface resists glaze penetration and sticking. It eliminates black spots, pinholes and surface defects, delivering glossy, high-quality glaze finishes and reducing product rejection rates remarkably.

• ---Efficient & Uniform Heat Transfer: Far better thermal conductivity than alumina kiln shelves. It ensures even heating across workpieces, minimizing color difference and deformation for consistent mass production quality.

• ---Excellent Corrosion Resistance: Tolerates acidic glazes, fritted glazes as well as oxidizing and reducing atmospheres, perfectly matching diverse sanitaryware firing techniques.

• ---Cost & Energy Efficient: Lightweight design reduces kiln load. Energy consumption can be cut by 15–25% thanks to excellent thermal conductivity. Long service life and low breakage rate also help enterprises slash overall operating costs.

•


Wide Range of Applications

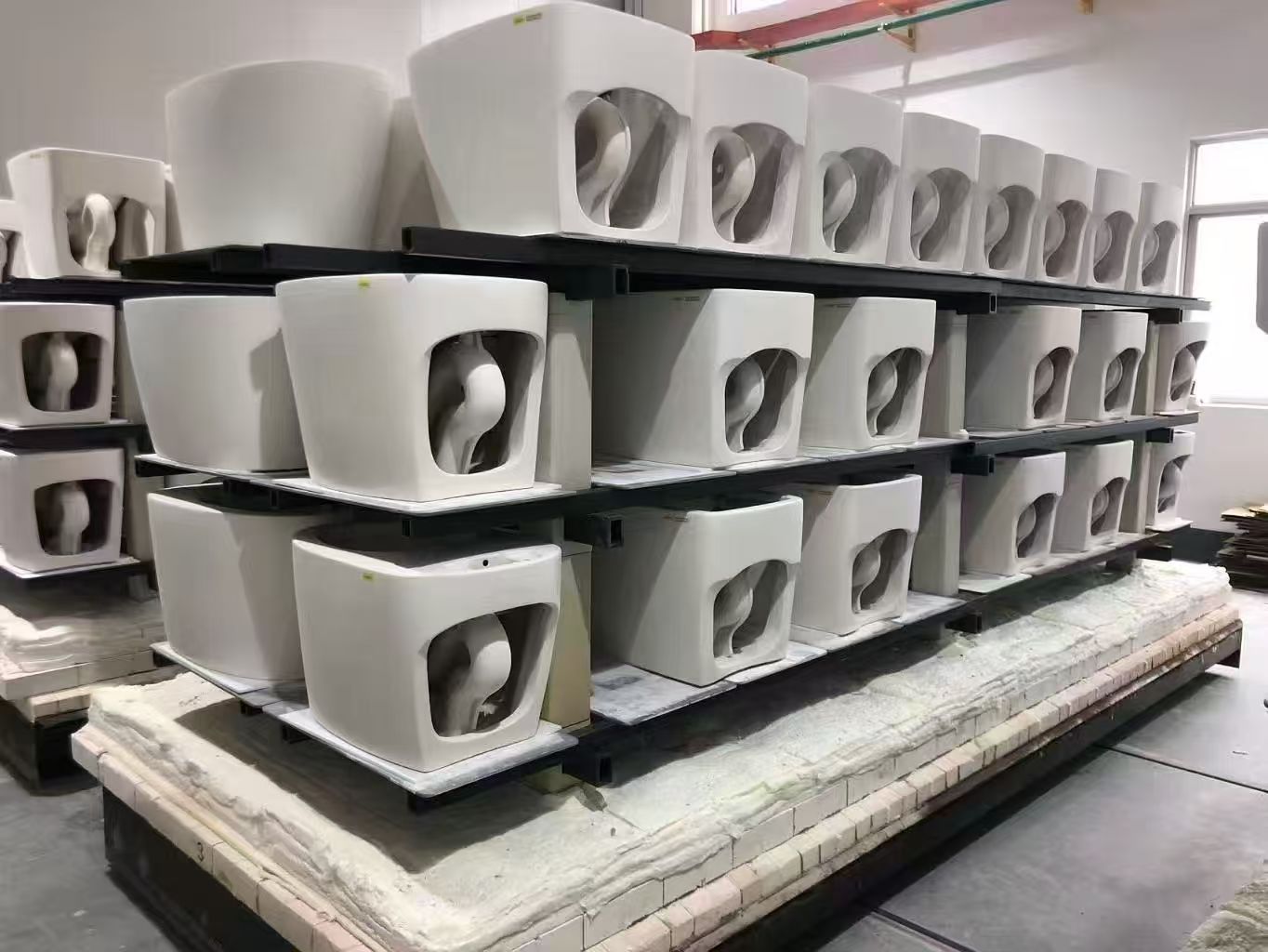

• ---Firing of one-piece & two-piece toilets

• ---Support for pedestal basins, vessel sinks and ceramic vanity tops

• ---Production of tank lids, fittings and irregular ceramic parts

• ---Compatible with tunnel kilns, roller kilns and shuttle kilns

•


NSiC large plates effectively resolve common production issues including product deformation, adhesion and inconsistent quality. As reliable high-temperature refractory components, they are the top pick for sanitaryware manufacturers pursuing quality upgrade, energy conservation and cost reduction.
