RSiC Kiln Furniture | Exclusive for Ultra-High-Temp Technical Ceramics

Which Kiln Furniture Will You Choose for Your Ceramic Production?

RSiC (Recrystallized Silicon Carbide) is our final recommended kiln furniture grade, engineered exclusively for professional high-temperature sintering with narrow industry coverage.

Two mainstream structural styles

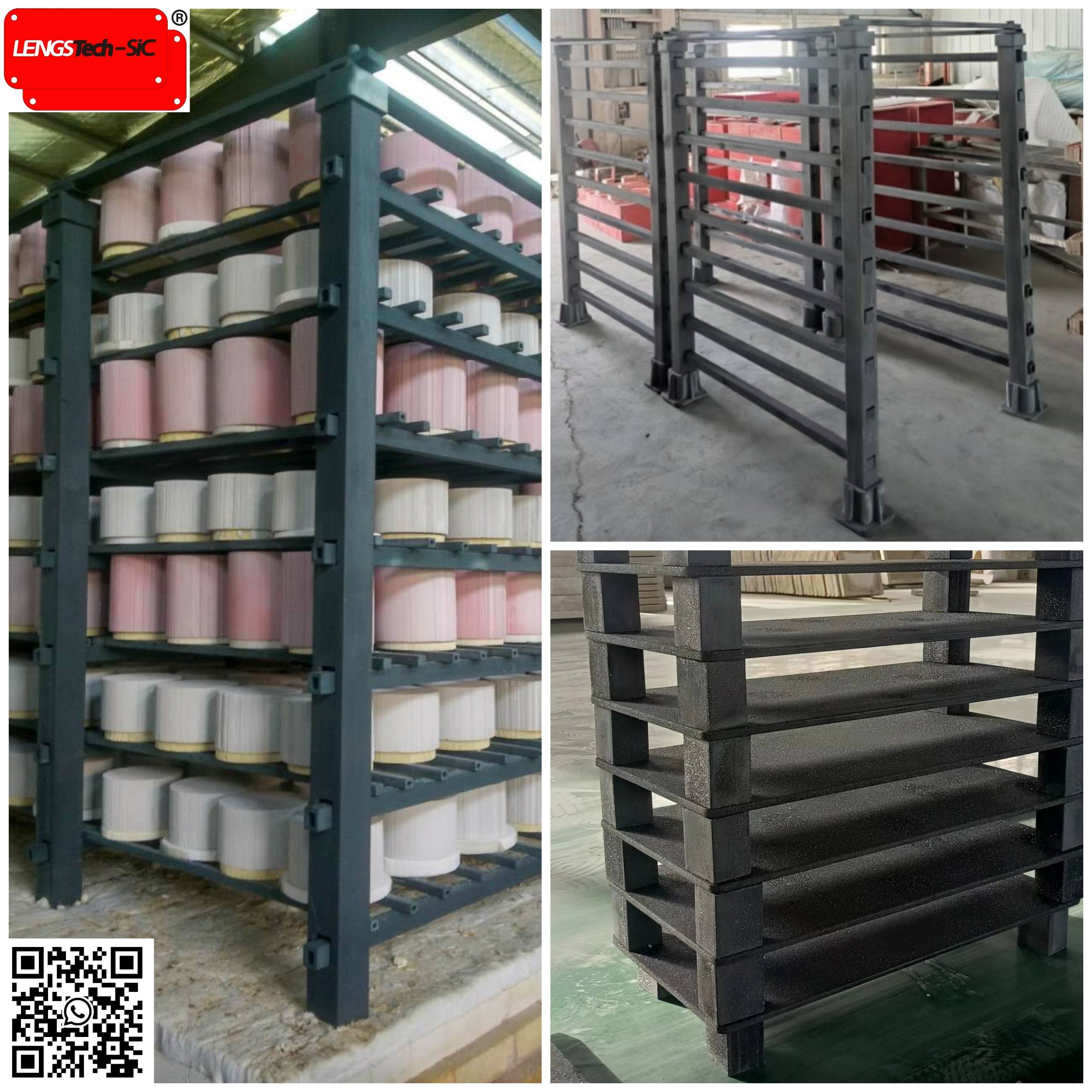

1, Heavy-duty assembled frame: Consists of RSiC columns, main beams, cross beams, hanging beams, end caps and base supports, paired with matching RSiC setter plates. Features ultra-stable structure and outstanding long-term durability.

2, Compact stacked type: Simple layer-by-layer assembly with small square RSiC posts + RSiC setters, smaller loading capacity, specially for small-size advanced ceramic blanks.

Core Application Scope (Working temp up to 1650℃ & above)

Designed for ultra-high-temperature firing of industrial advanced ceramics: filter ceramic, foam ceramic, honeycomb ceramic, refractory brick, alumina & zirconia ceramics, magnetic components, high-temperature membrane, fiber materials, ITO sputtering targets and semiconductor ceramic parts as shown on the photo.

Important Professional Tips

1, RSiC bears higher production cost and is only cost-effective above 1500℃ ultra-high temperature environment.

2, Do NOT mix use with SiSiC / NSiC / cordierite mullite kiln furniture. At medium & regular high temperature below 1500℃, affordable SiSiC & NSiC perform better than RSiC.

3, RSiC is nearly irreplaceable and uniquely dominant for all sintering processes over 1500℃ where alternative refractory materials barely exist.

Contact LENGSTech if you want to buy Kiln Furniture Products

www.lengstech.com

info@lengstech.com

WA+86 13930552202

#LENGSTech #RSiC #RecrystallizedSiliconCarbide #HighTempKilnFurniture #AdvancedCeramics #SemiconductorCeramic #ZirconiaAluminaCeramic #HoneycombCeramic #IndustrialRefractory #UltraHighTemperatureSintering #LENGSTechSIC
